This page is intended to show the necessary connections and steps to successfully boot and operate the development kit.

Connecting the board

Prepare iMX6 Base Board and plug in (bootable) microSD card, serial cable, Ethernet cable, HDMI cable and other devices or interfaces you need. Plug the power supply connector in.
iMX6 Rex Development Kit-Connections.jpg

Default booting selection

To boot from SPI Flash, make sure that BOOT_MODE jumper is not present:
iMX6 Rex Development Kit-Boot mode selection.jpg

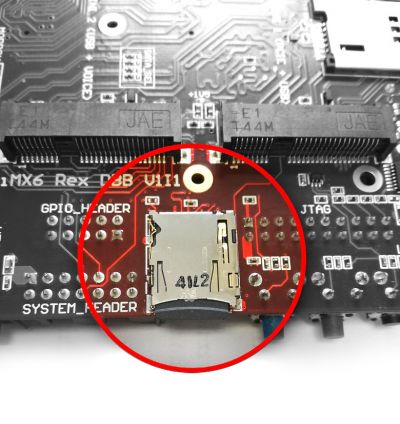

For loading filesystem, micro SD card needs to be plugged into the bottom slot J29:
iMX6 Rex Development Kit-Bottom SD slot.jpg
